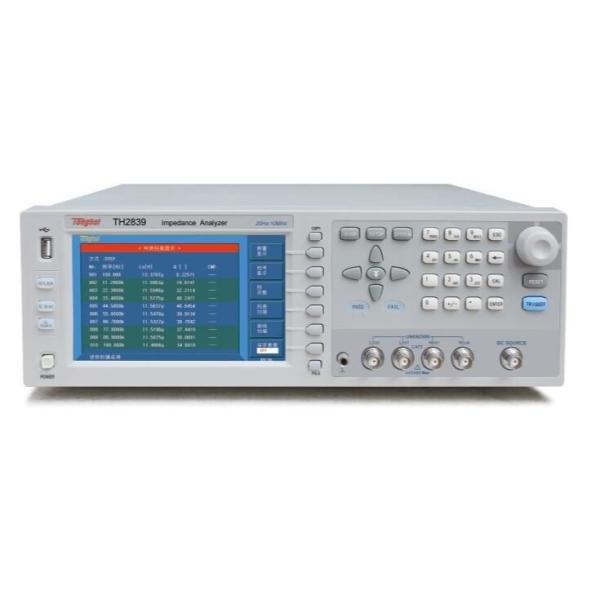

TH2839 Series High Stability, Up to 15 Test Ranges Impedance Analyzer for Semiconductor Components
Features
High accuracy:Auto-balance bridge technology, 4-terminal pair
High stability and consistency:Up to 15 test ranges
High speed:Up to 7.7ms
High resolution:7- inch, 800×600
201 Points List Sweep Function
Multi-parameter Graphic Sweep Function
Varactor diode automatic polarity function
10 bins sorting, sorting result with sound and light alarm
Storage space: Internal: 40 groups of setting files,USB External: 500 groups of setting files, data log files and image files
Simultaneous testing for Ls-RDC
High compatibility: Support SCPI commands, compatible with KEYSIGHT E4980A, E4980AL, HP4284A etc.
Applications
Passive component:
Impedance parameter estimation and performance analysis of capacitor, inductor, magnetic core, resistor, piezoelectric devices, transformers, chip components and network components
Semiconductor component
Parasitic parameter test and analysis of LED driver integrated circuit, C-V DC features of varactors, Parasitic parameter analysis of transistors or integrated circuit
Other components
Impedance assessment of printed circuit boards, relays, switches, cables, batteries
Dielectric material
Dielectric constant and loss angle evaluation of plastics, ceramics and other materials
Magnetic materials
Magnetic permeability and loss angle assessment of ferrite, amorphous body and other magnetic materials
Semiconductor materials
Dielectric constant, electrical conductivity and C-V characteristics of semiconductor materials
Liquid crystal cell
Dielectric constant, elastic constant and C-V characteristics of liquid crystal cell
Specifications
| Model |
TH2839 |
TH2839A |
| Test Frequency |
20Hz-10MHz |
20Hz-5MHz |
| Basic Accuracy |
0.05% |
| AC Singal |
Voltage |
5mVrms to 2Vrms |
| Current |
50Arms to 20mArms |
| DC Bias |
Voltage |
0V to +/-40V |
| Current |
0mA to +/-100mA |
| External DC Bias |
Max 120A by 6 sets of TH1778 |
| Independent Voltage Source |
-10V to +10V |
Accessary
| Standard |
| Accessories name |
Model |
|
| Four-end clamp with card |
TH26005C |
|
| Fixture |
TH26047 |
|
| Short circuit |
TH26010 |
|
| Kelvin test lead with box four-terminal insulation and lock |
TH26011BS |
|
| Optional |
| Accessories name |
Model |
|
| Box patch test cable |
TH26009B |
|
| Magnetic ring fixture |
TH26008A |
|
| Dielectric test fixture |
TH26077 |
|
